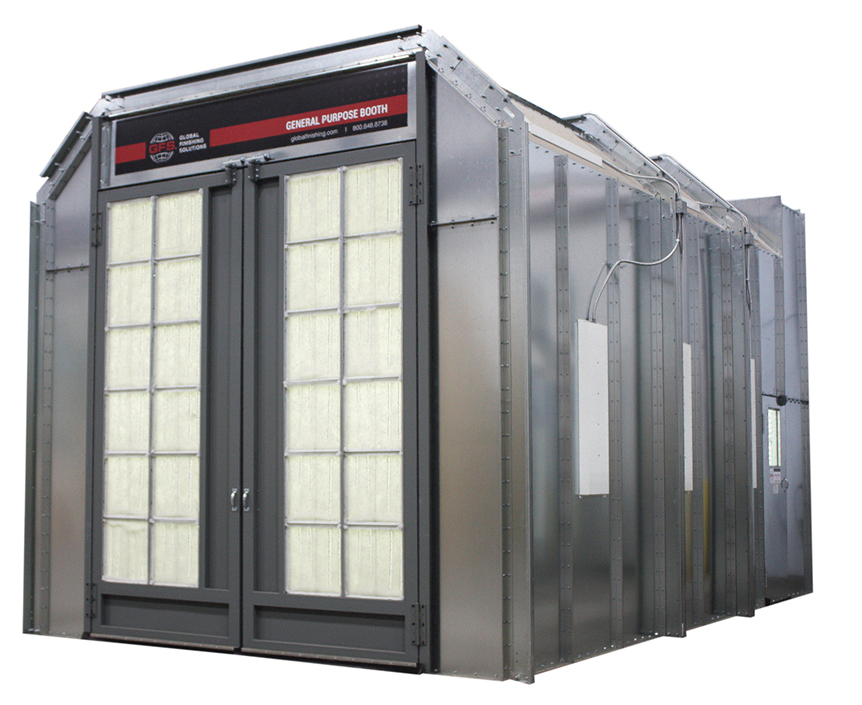

GFS General Purpose Crossdraft Non-Pressurized Paint Booth

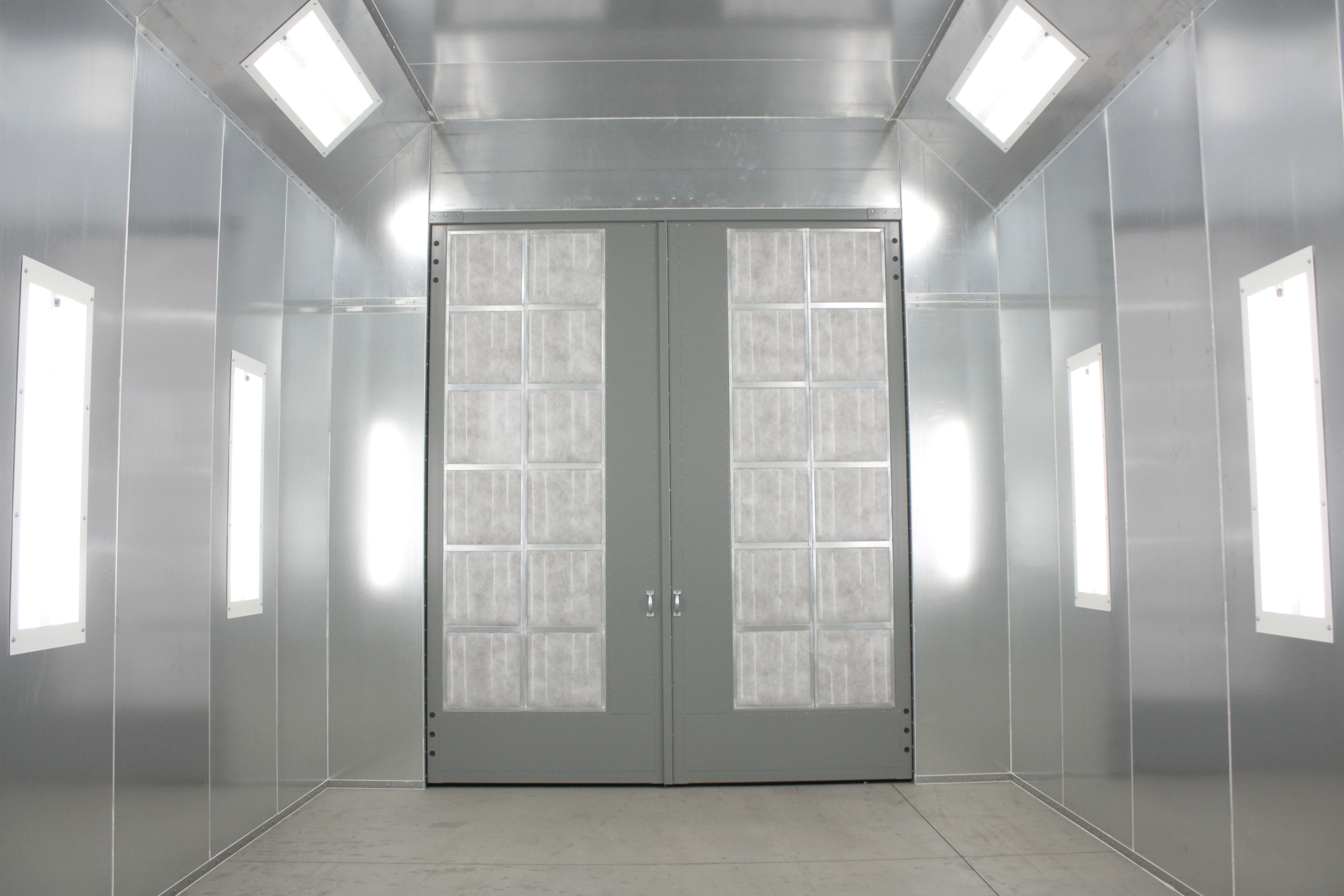

The simplest, most cost-effective configuration, air flows horizontally through a crossdraft booth, parallel to the floor and over the product. Crossdraft airflow starts at the front of the booth, with air entering the booth through either filtered products doors (non-pressurized booths) or an intake chamber (pressurized booths). Air exits the booth through an exhaust plenum located at the rear of the booth.
MATERIALS &
CONSTRUCTION
General Purpose Booths are constructed from high-quality, 18-gauge, G90 galvanized sheet steel. Quality components including plate steel door hinges, friction style latches and precision-punched vertical panels with sturdy nut-and-bolt assembly ensure longevity, safety and excellent structural integrity.
FULLY ETL LISTED
GFS General Purpose Paint Booths are perfect for industrial manufacturers and businesses looking for a safe, clean, code-compliant environment for painting medium-sized equipment, utility vehicles and trucks.
Our General Purpose line is designed to meet all industry safety standards and comply with applicable International Fire Code (IFC) and NFPA codes for proper airflow and paint booth use. GFS General Purpose Paint Booths have achieved ETL and ETL-C listing for the booth enclosure and all standard booth models and options, validating performance and ensuring worry-free planning and installation.
the ETL or ETL-C mark on your booth is proof of compliance with North American safety standards, including OSHA, NFPA, UL and more. A UL or CUL listing verifies that Underwriters Laboratories has tested GFS’ product and determined that it meets UL’s stringent requirements. GFS works with these third-party agencies to ensure the safety of our General Purpose Paint Booths and components.
| Booth Overall Size | 14' W x 10' H x 24' L, 14' W x 10' H x 27' L, 14' W x 10' H x 30' L, 14' W x 10' H x 33' L, 14' W x 12' H x 24' L, 14' W x 12' H x 27' L, 14' W x 12' H x 30' L, 14' W x 12' H x 33' L |
|---|
